| Quantity: 0 Pieces |
| Pipe Size: 1/2 to 4 |
| Max Operating Pressure(MPa) 1.034 |
| Body Material: Stainless Steel |
| Type: Fitting |
Applicable medium: Water, Air, Natural Gas, Oil, Steam
Specifications Met: ASTM A351
Shape: Tee
Connection Type: Thread to Thread, Equal Dia
Thread Type: NPT, BSPT, BSPP
Dimensions
nominal | D | A | B | C | E | Kg/piece |
inch | mm | mm | mm | mm | mm | |
0.38 | 16 | 22.2 | 20 | 16.1 | 10 | 0.09 |

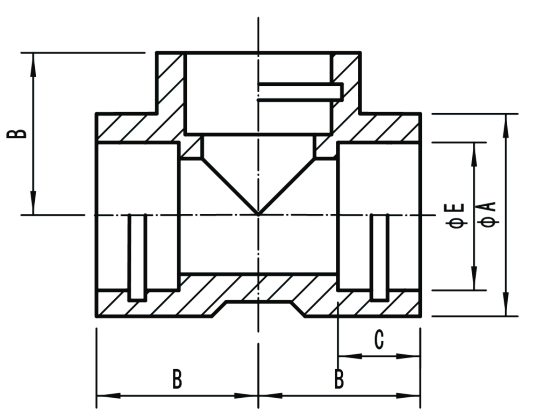

7. Drawing
